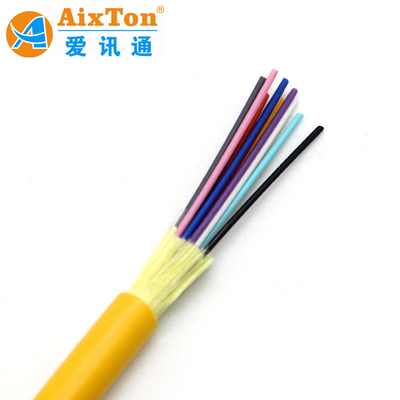

G652D GJFJV Indoor Function 2 Core 12Core Single Optical Fiber Cable with for Kevlar Yarn Communication Cables
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| Product Name | GJFJV-SM-12F | Fiber type | Single-Mode(Customize Multi-Mode) |
|---|---|---|---|
| Number Of Fiber | 12F(Support 24F/36F/48F/96F) | Cable Structure | Tight-buffered, Loose tube, Armored |
| Cable Diameter | 6.2±0.1MM | Bending Radius | 10D/20D (mm) |
| Outer Jacket Materail | LSZH | 브랜드 이름 | AIXTON/OEM |
제품 설명
LSZH Indoor Fiber Optic Cable 12 Core For Horizontal Distribution
Multi Mode Fiber Optic Cable Distribution Single mode 12 Core GJFJV Indoor Fiber Optic cable
Tight-Buffered Distribution Cable contains several tight-buffered fibers bundled under
the same jacket with kevlar strength members to stiffen the cable and prevent kinking. With
aramid yarn as a reinforcing member, the cable is Light weight, softness and easy to peel.
It is widely used as pigtails and jumpers for communication equipments.
Optronics breakout cables are constructed of up to 24, 2mm simplex cables stranded
around a central strength member. Each simplex has its own aramid yarn strength member
and jacket. These sub units are wrapped in a polyester tape and jacketed in LSZH.
Applications
Internal breakout cable for horizontal distribution
Features
1. Choice of fibre type
2. Individual high strength aramid yarn strength members for ease of handling
3. Easy to useLightweight and compact
4. LSZH jacket
Fiber Parameters
|
No. |
Items |
Unit |
Specification |
|
|
OM2 |
||||
|
1 |
Mode Field Diameter |
850nm |
um |
50±0.5 |
|
1300nm |
um |
50±0.5 |
||
|
2 |
Cladding Diameter |
um |
124.8±0.7 |
|
|
3 |
Cladding Non-Circularity |
% |
≤0.7 |
|
|
4 |
Core-Cladding Concentricity Error |
um |
≤0.5 |
|
|
5 |
Coating Diameter |
um |
245±5 |
|
|
6 |
Coating Non-Circularity |
% |
≤6.0 |
|
|
7 |
Cladding-Coating Concentricity Error |
um |
≤12.0 |
|
|
8 |
Cable Cutoff Wavelength |
nm |
λcc≤1260 |
|
|
9 |
Attenuation(max.) |
850nm |
dB/km |
3.5 |
|
1300nm |
dB/km |
1.5 |
||
Cable Parameters
|
Items |
Parameters |
|
|
Fiber count |
12 |
|
|

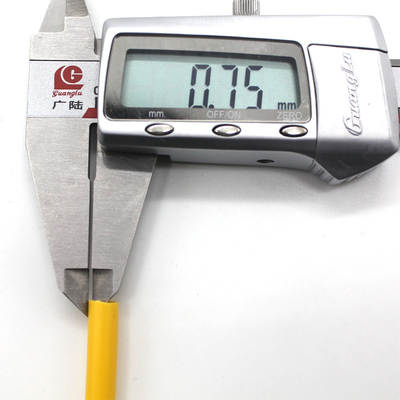

Tight-buffered Fiber |
Diameter |
850μm±50μm |
|
Material |
LSZH |
|
|
Color |
Blue Orange Green Brown Gray White Red Black Yellow Purple Pink Aqua |
|
|
Strength Member |
Kevlar |
|
|
Jacket |
Diameter |
6.2mm±0.2mm |
|
Material |
LSZH/PVC |
|
|
Color |
Orange |
|
Fiber colour
|
Blue |
Orange |
Green |
Brown |
Grey |
White |
Red |
Black |
Yellow |
Purple |
Pink |
Aqua |
Mechanical and Environmental Characteristics
|
Items |
Unite |
Parameters |
|
Tension(Long Term) |
N |
200 |
|
Tension (Short Term) |
N |
660 |
|
Crush (Long Term) |
N/10cm |
200 |
|
Crush (Short Term) |
N/10cm |
1000 |
|
Min. Bend Radius (Dynamic) |
mm |
20D |
|
Min. Bend Radius (Static) |
mm |
10D |
|
Operating Temperature |
℃ |
-20~+60 |
|
Storage Temperature |
℃ |
-20~+60 |
FAQ
Q1:What are the advantages of your price?
Q2: What is your quality advantage?
A2: We strictly according to the ISO9001 quality management system, insisting "Enough Cores, Enough Meters, High Quality, High Performance". Providing our customers with higher quality products and services.
Q3. Do you support customized brands?
A3: Yes! The professional OEM services will be welcomed to us. Our factory accepts to make the logo free for bulk orders.
Q4: What are the benefits of working with you?
A4: New customers can enjoy AIXTON’s stock and annual year-end dividends, and support long-term cooperative customers to upgrade to global agents and enjoy more discounted prices.
